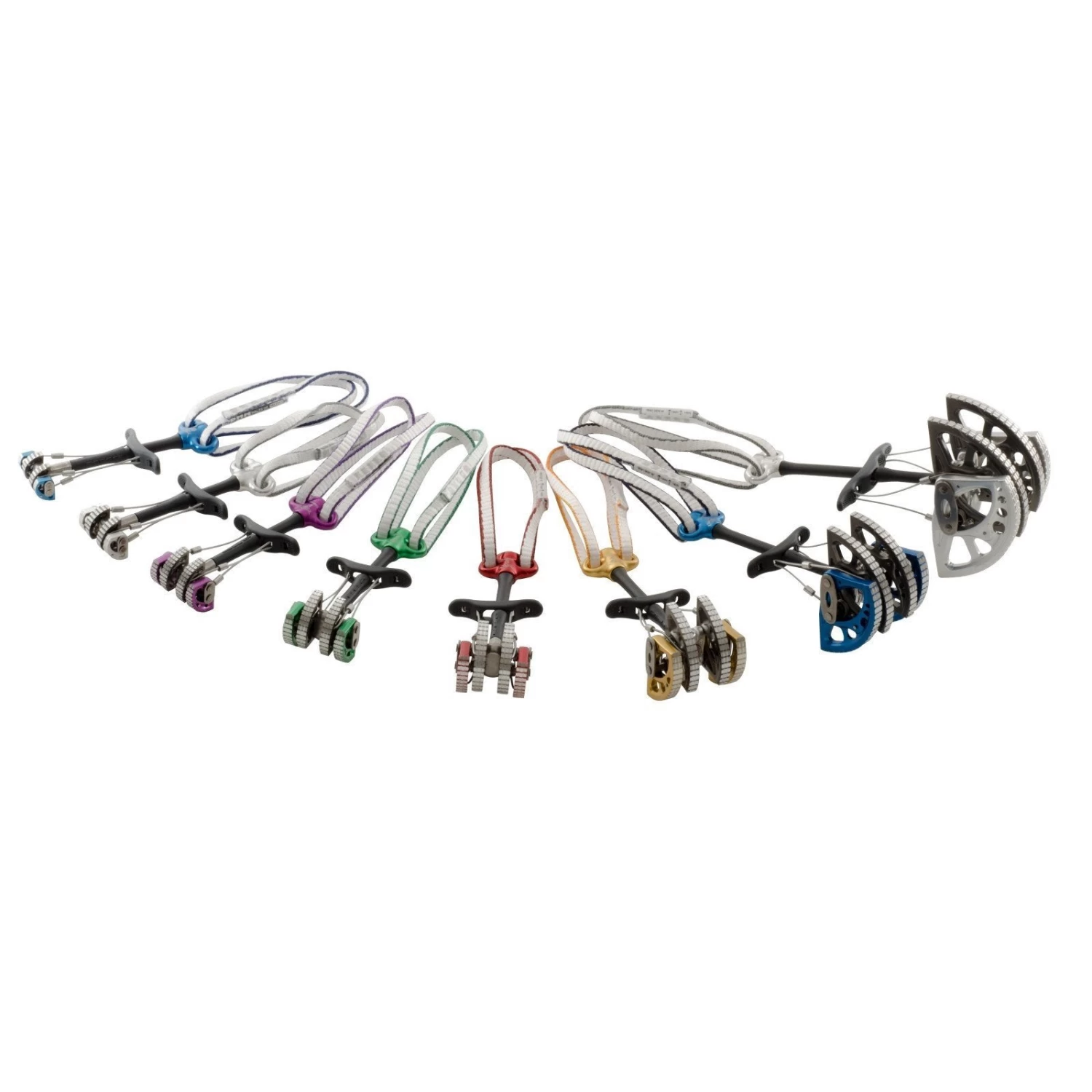

DMM Dragon Cams

The DMM Dragon Cams are top notch climbing cams with a massive range that allow you to make the most of every placement.

With increased holding power and reduced walking capabilities, the DMM Dragon Cams particularly excel in slick or soft rock types and in sub-optimal placements. Increased contact area with a raw aluminium finish and additional bite points are the hallmarks of DMM’s revolutionary TripleGrip cam lobes. These features combine to increase friction between the cam lobe and the rock it’s placed in, resulting in maximised holding power and minimised walking. Single stem, dual axle design gives the Dragons 360° flexibility and the greatest expansion range, increasing both performance in poorer placements and your chance of getting the right piece first time.

The hot forged thumb press improves ergonomics while reducing the chance of a fumble from gloved hands or pumped fingers, while the extendable sling cuts down on quickdraws needed to extend placements, significantly reducing weight on your harness. The design of the thumb press means that the strength of the Dragon suffers no compromise when the sling is extended. The Dragons low weight does not compromise its strength – they are rated to a huge 14kN from size 1 upward and the additional material in the lobes has improved their resistance to deformation.

Sizing

Size	Weight	Strength	Range (mm)	Colour
00	75g	10kN	13.6-22.5	Blue
0	85g	12kN	16.0-26.7	Silver
1	97g	14kN	20.0-33.0	Purple
2	106g	14kN	24.0-41.0	Green
3	119g	14kN	29.0-50.0	Red
4	147g	14kN	38.0-64.0	Gold
5	195g	14kN	50.0-85.0	Blue
6	276g	14kN	68.0-114.0	Silver
7	366g	14kN	88.0-149.0	Purple

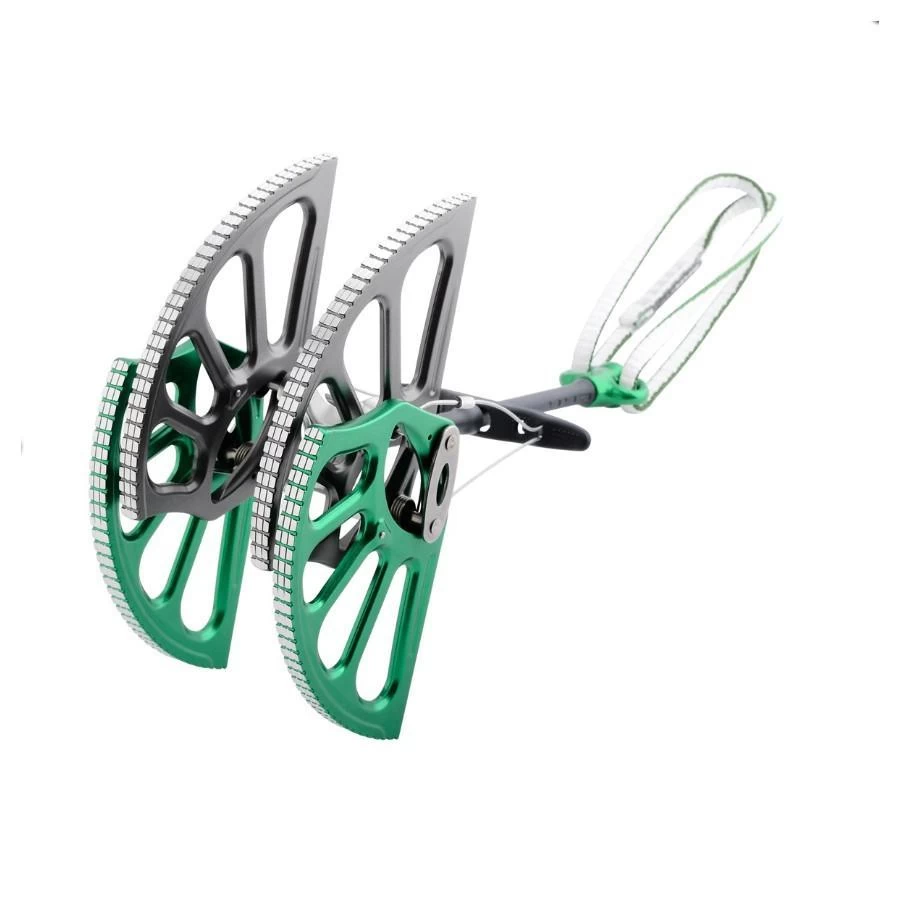

8	527g	14kN	116.0-195.0	Green

Video

Features

• Colour coded for quick and easy size selection. Colours are co-ordinated across passive and active protection, for quick selection of alternatives if your first choice doesn’t fit.
• TripleGrip cam lobes give increased holding power and reduce walking
• Dual axle, single stem design for 360° flexibility and a large expansion range
• Ergonomic, hot forged thumb press with extendable 8mm Dyneema sling
• 13.75° cam angle for high holding power

Specification

• Camstops: Yes
• Extendable Sling: Yes
