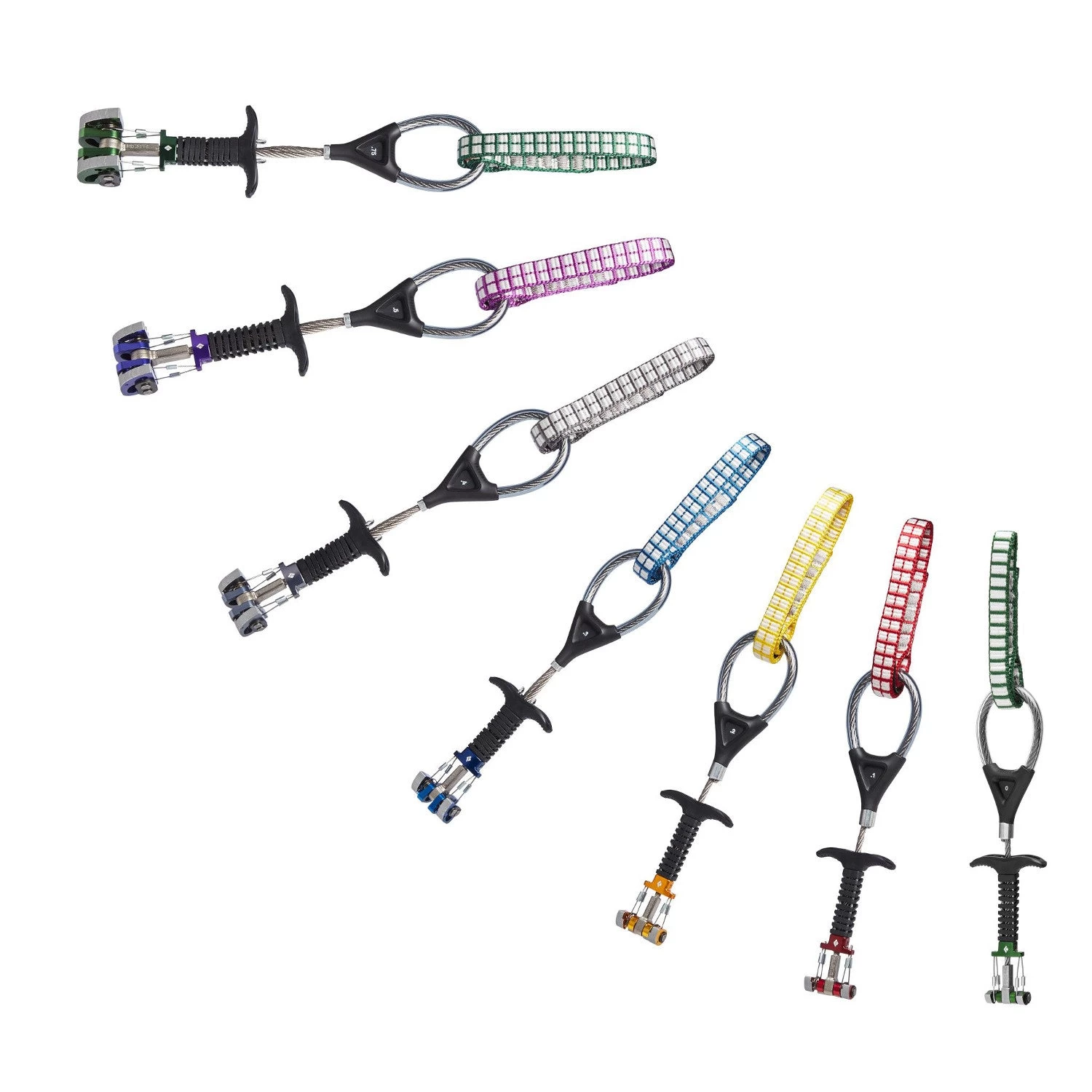

Black Diamond Camalot Z4

The Black Diamond Camalot Z4 is a redefined version of the Classic C4 cam. The BD Z4 has all the answers to your cam frustrations.

With input from Black Diamonds top athletes the Z4 cam is a single-stem cam that stays rigid in-hand, thanks to the RigidFlex System. This new technology massively increases the ease of placements when sliding the cam in cracks but when the cam has been placed the stem flexes and decreases the chance of the cam walking/adjusting in the crack when being climbed above which makes sure your placement has the maximum chance of holding.

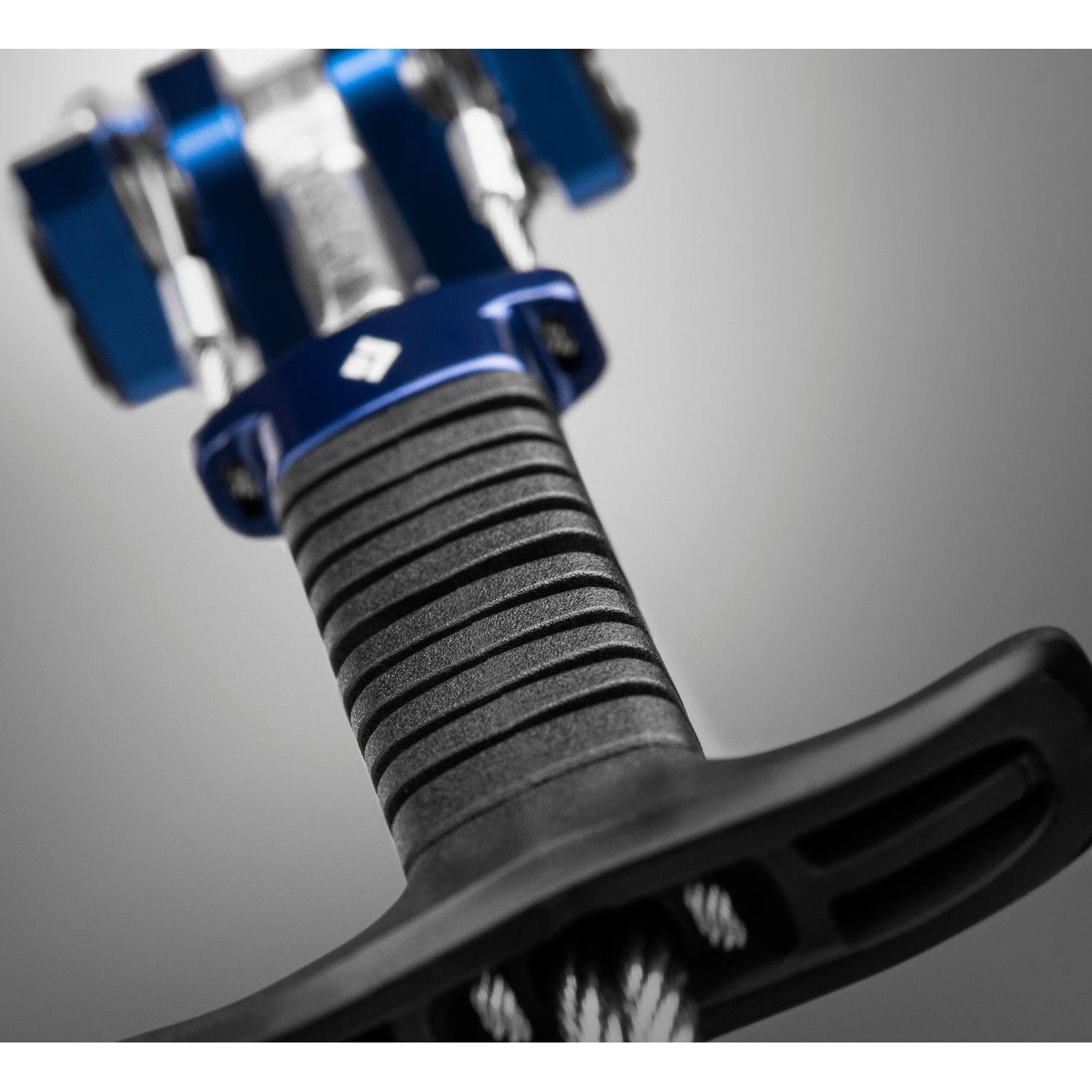

Independently floating trigger are used on the Camalot Z4 which make sure the cam doesn’t bend while under tension and retracted, but once placed allows the stem to move, ensuring a placement that stays put and doesn’t walk when pulled directionally.

The stem on the larger sizes also utilises dual twisted cable construction which provides uniform flex in all directions, while single cable construction is implemented on smaller sizes to avoid buckling when pulling hard on the trigger and to reduce trigger profile.

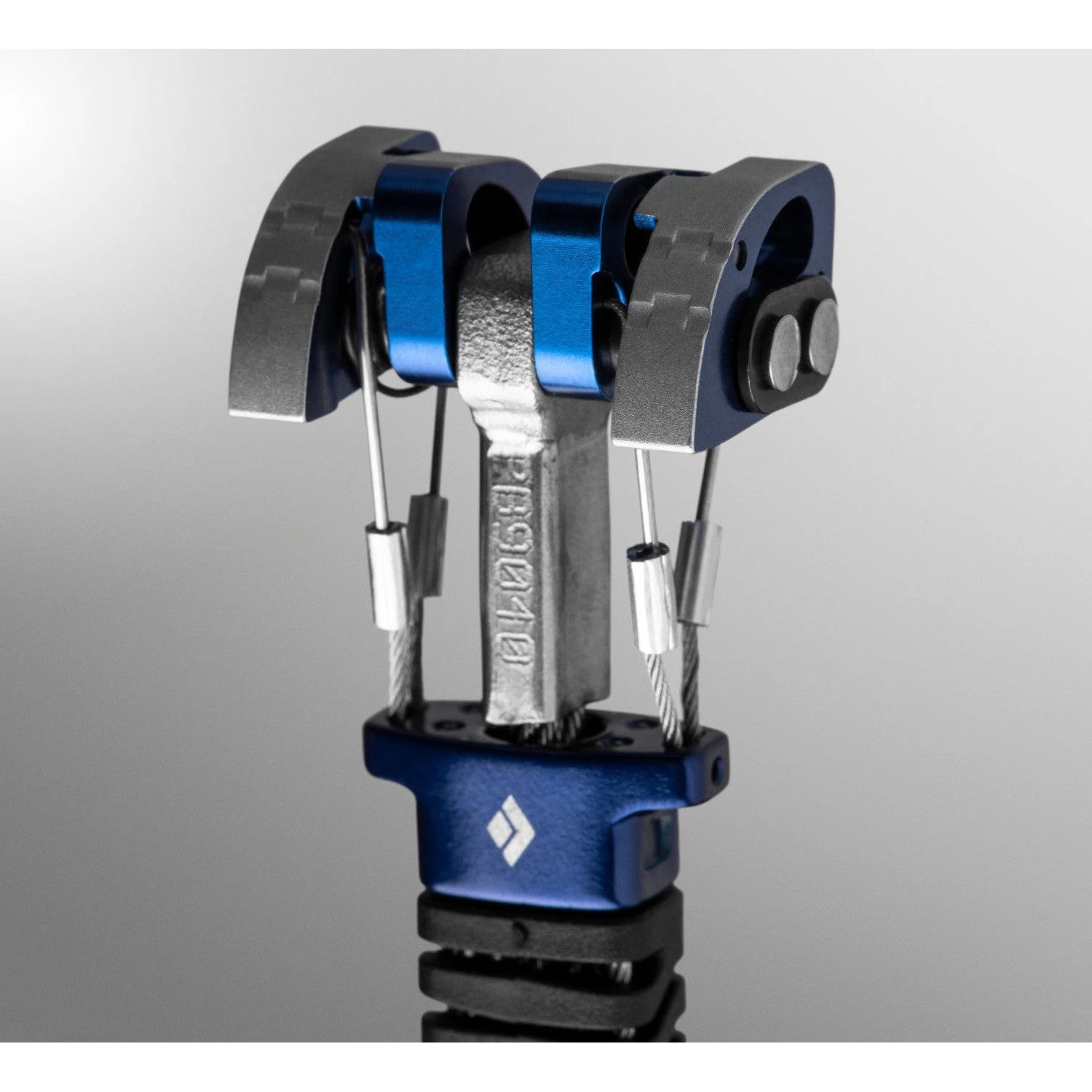

Featuring a similar head-width as the old BD Camalot C3 design, but with 4 lobes that are sandblasted for better holding power, the Z4’s are not only an upgrade, but are also available is smaller sizes. Starting from #0, Black Diamond’s smallest cam ever made, and ranging to .75, allowing you to dial in the rack and have an tool for every job.

Features

• RigidFlex stem stays rigid in-hand for easy placement, but flexes once placed to reduce walking
• Dual twisted cable construction for uniform flex on larger sizes; single cable construction on smaller sizes to avoid buckling and reduce trigger profile
• Narrow head width for tight placements
• Sandblasted lobes for better holding power
• Lightweight yet durable Dynex sling with a unique colour scheme for easy identification from other Camalots

Specification

• Camstops: Yes above 0.2
• Extendable Sling: No

Sizing

Size	Weight	Strength	Range (mm)	Colour

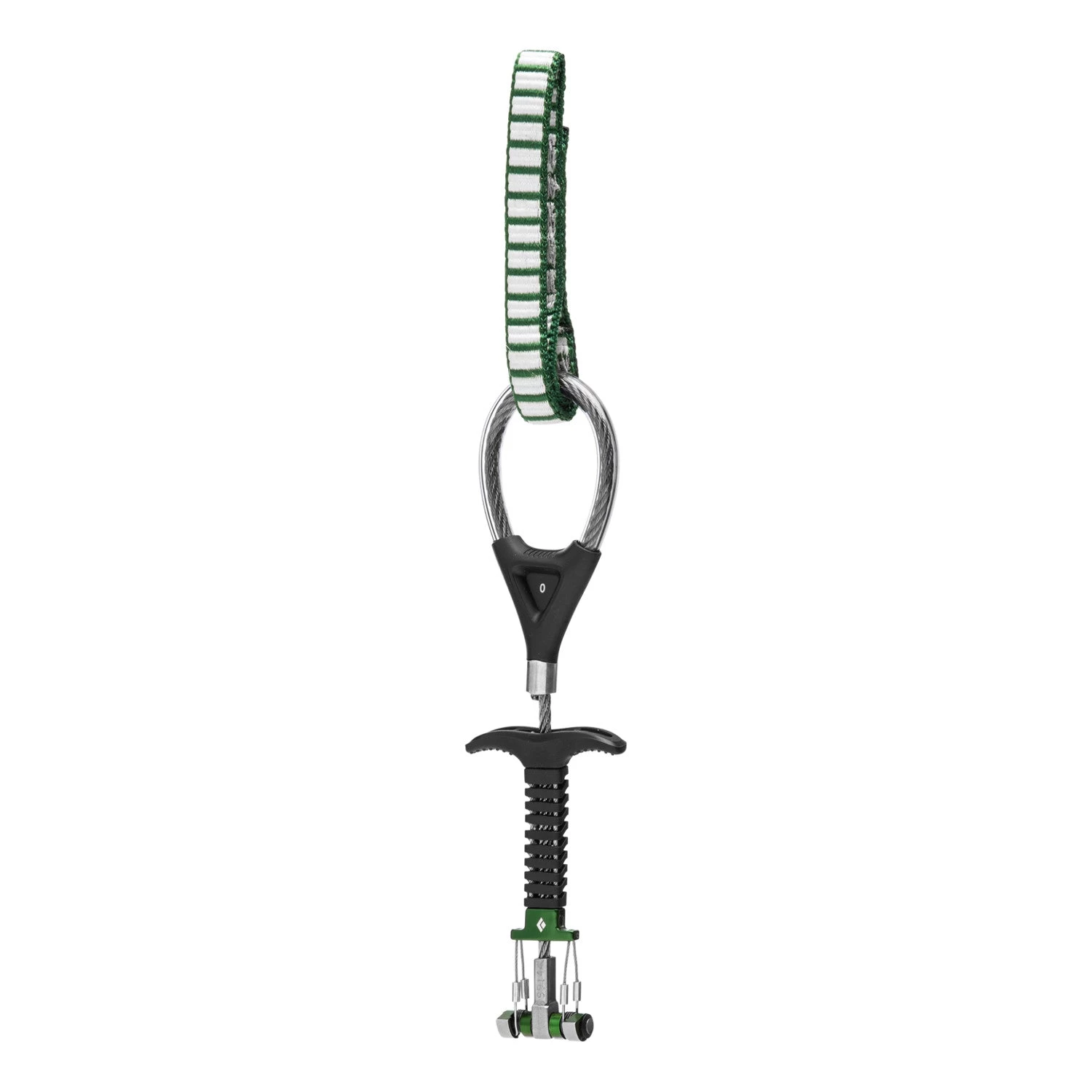

0	43g	5kN	7.5-11.8	Green

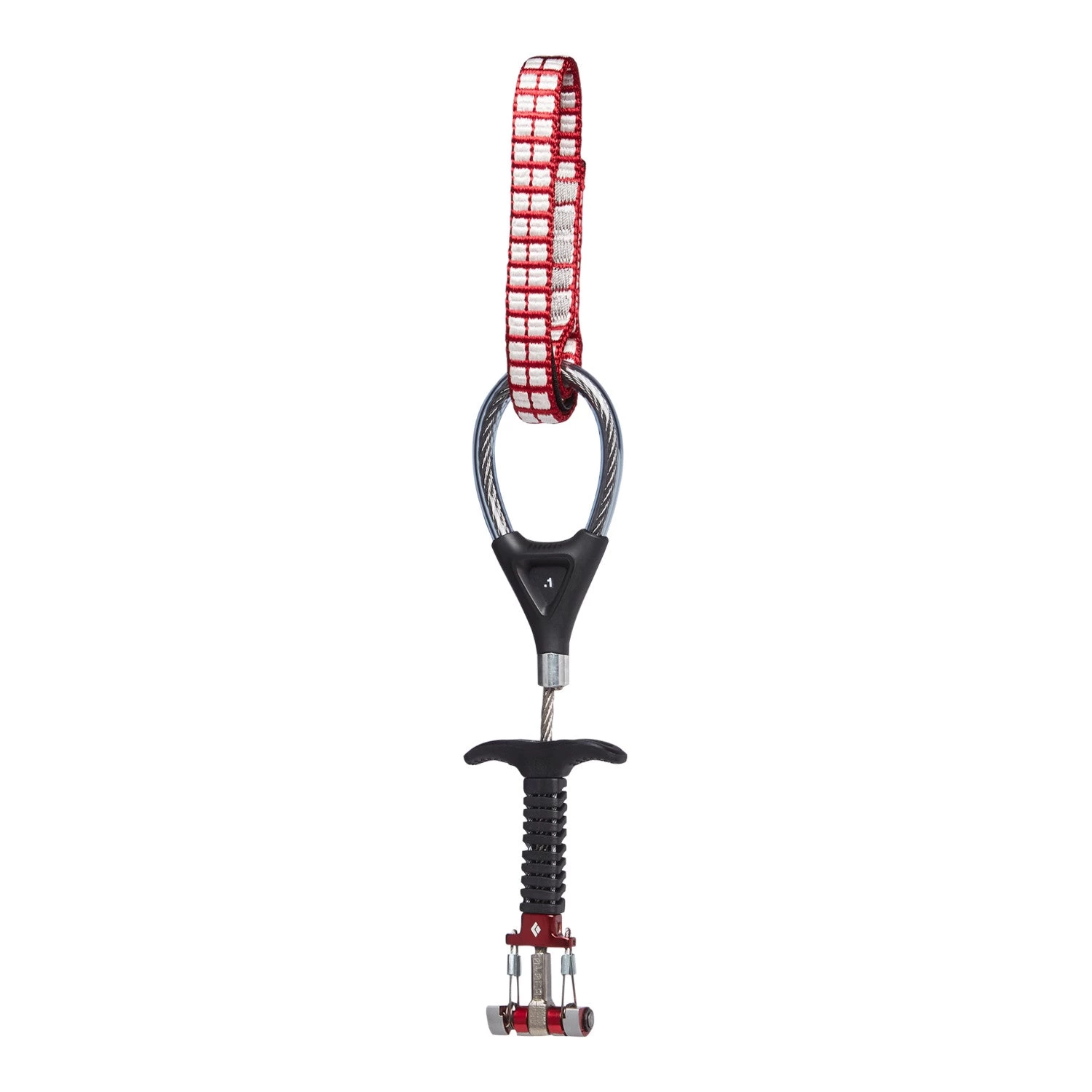

0.1	45g	5kN	8.8-13.8	Red

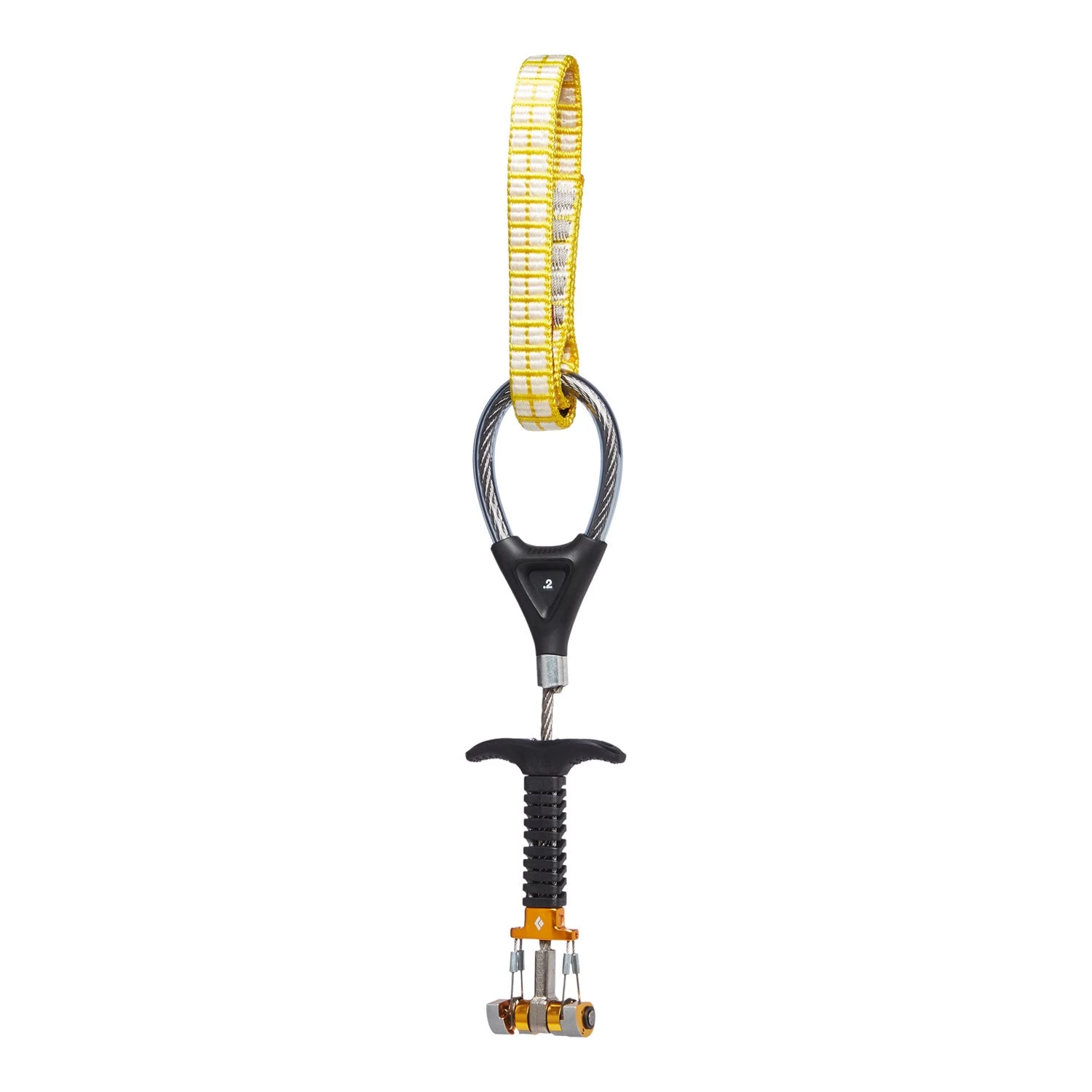

0.2	48g	6kN	10.4-16.3	Yellow
0.3	54g	8kN	12.4-22.6	Blue

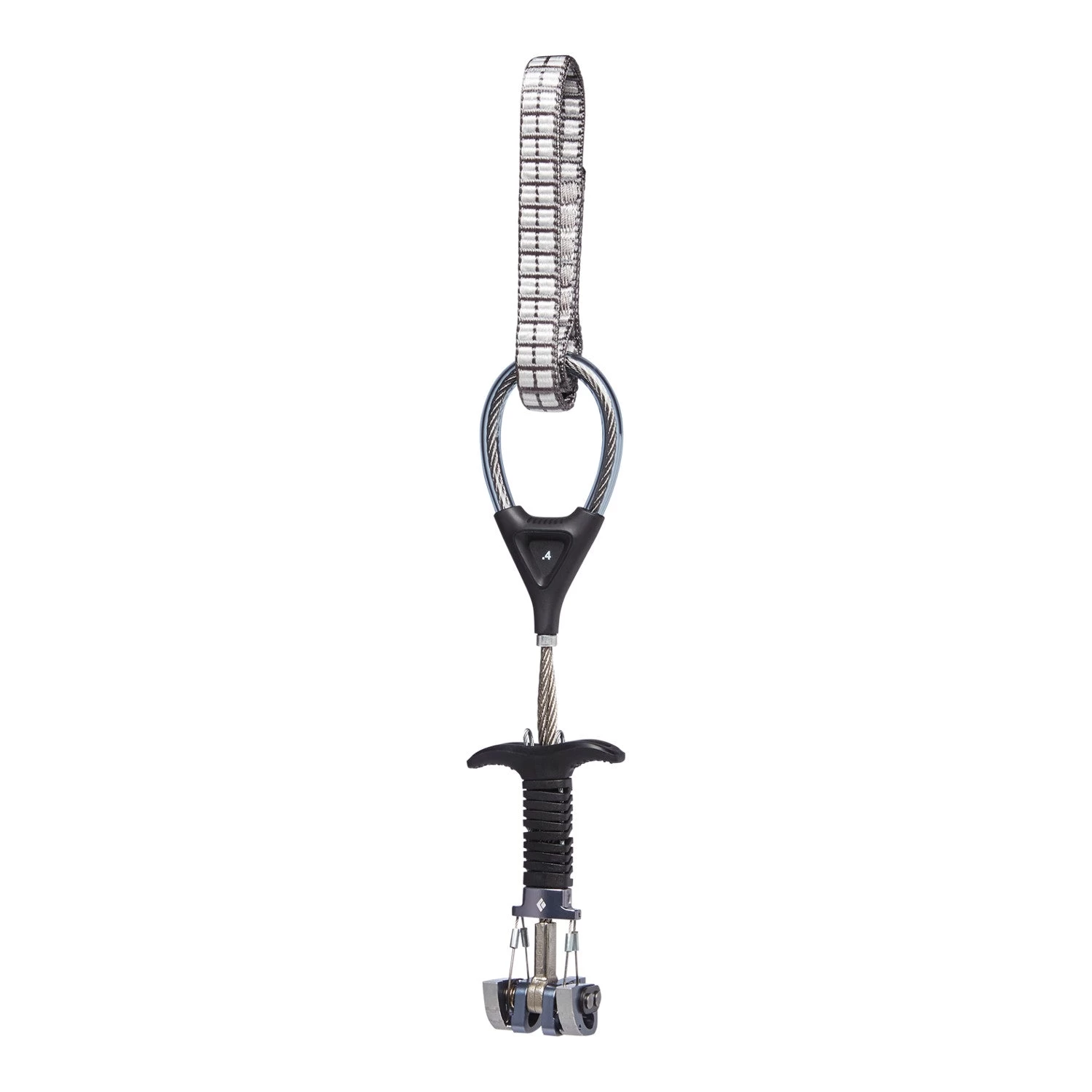

0.4	61g	9kN	15.3-27.7	Grey

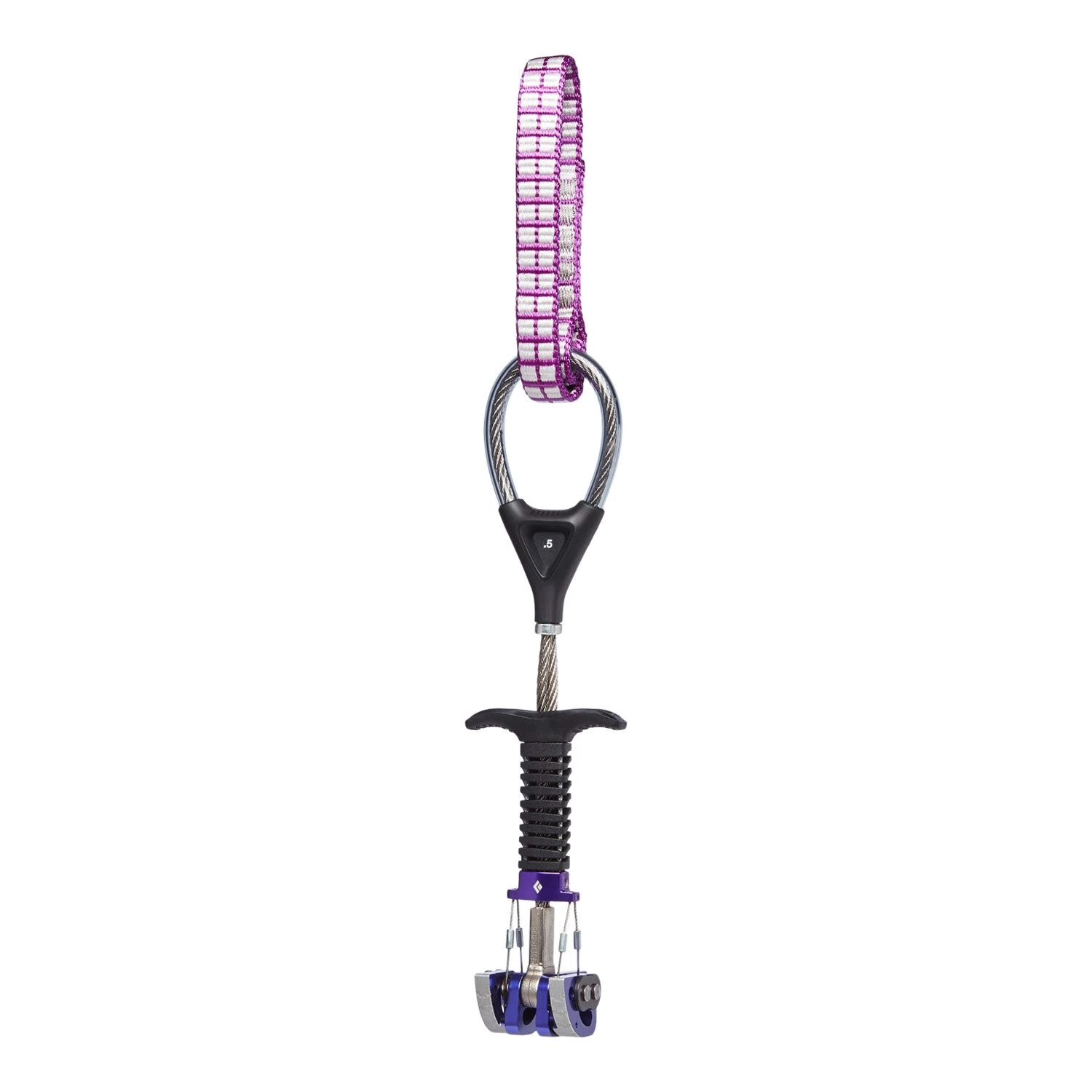

0.5	77g	10kN	18.8-33.9	Purple

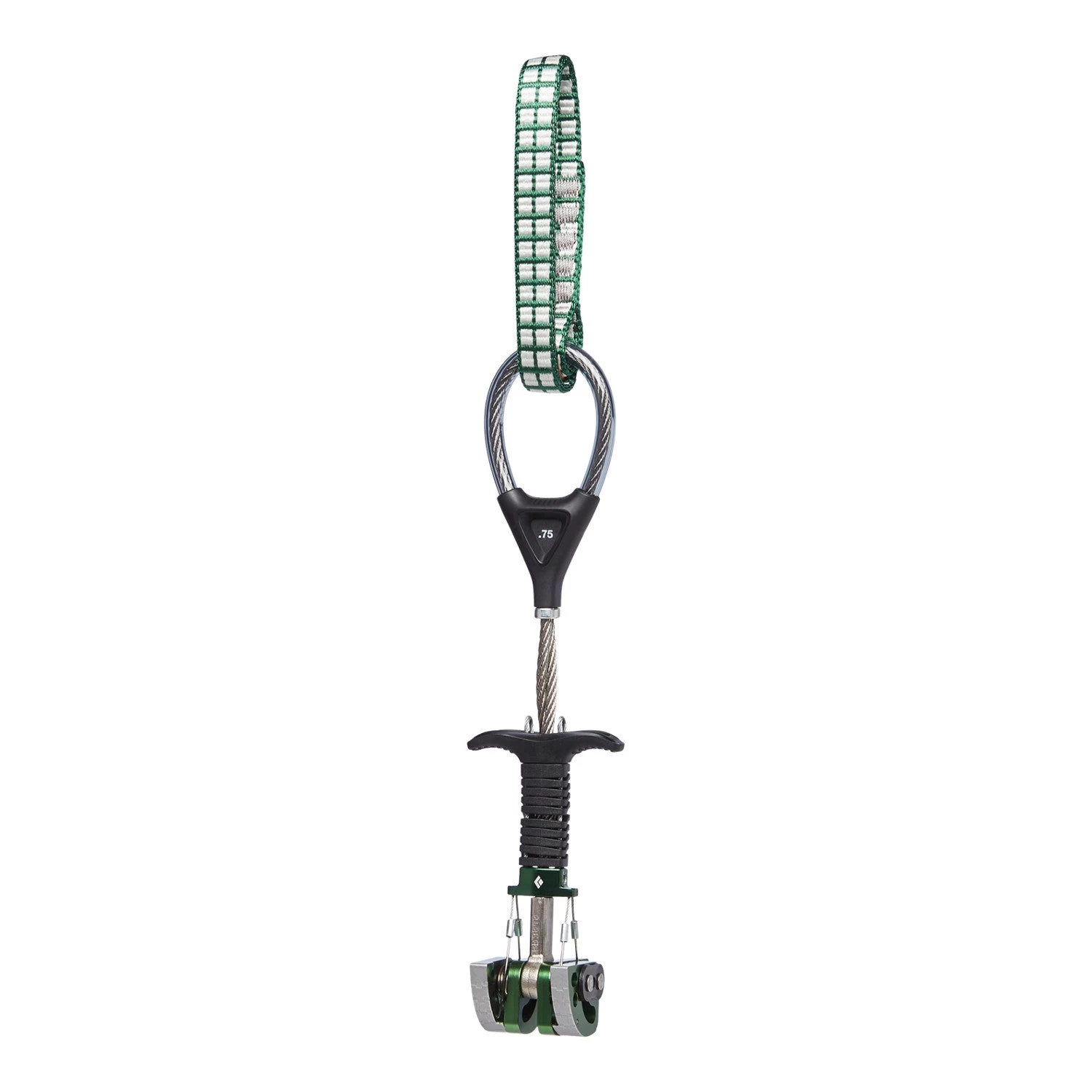

0.75	93g	10kN	23.1-42.1	Green
